Sew Technology WHERE QUALITY RESTORATION IS OUR BUSINESS

OUR RATING SYSTEM

Rating Assigned Prior To Restoration


MINT CONDITION: MINT rating means there are no noticeable blemishes or marks in the finish, possibly some very a couple very light marks or scratches on finish. Mechanically in like new condition, paint is not faded or missing all decals are like new

EXCELLENT CONDITION: EXCELLENT rating means mechanically in new condition. Paint may have some minor scratching or blemishes. There might be some fading or nicks in paint. Decals are in good condition or have been repaired

SEMI-INDUSTRIAL OR INDUSTRIAL STRENGTH MACHINE VERSUS TRUE INDUSTRIAL MACHINE


INDUSTRIAL STRENGTH HAS THE FOLLOWING COMPONENTS:
1. All metal construction, all drive components composed of steel or metal alloy
2. Minimum pressor foot clearance of 5/16" that will sew virtually any fabric that will fit in that space
3. Internal motor system

TRUE INDUSTRIAL MACHINE HAS THE FOLLOWiNG COMPONENTS:
1. Weighs more than 200 lbs and takes over a large footprint (most 2 foot by 5 foot)
2. Has an internal belt driven motor and usually requires 220 volt power
3. Does not have an oil pan and pump to circulate oil in the head of the machine so the oil needs to be changed on a regular basis
4. Is difficult to control at slow speeds as most industrial machines are designed to operate at very high speeds

RESTORATION PROCESS


Our Technicians take all of our Sewing Machines through the following reconditioning steps in order to restore beauty, functionality, reliability, and provide lasting value. Each of the metal assemblies are inspected for wear against new tolerances. Parts out of tolerance are replaced.

All Parts Removed and Machine Disassembled

Stacks Image 889
Stacks Image 903
Stacks Image 1088
Stacks Image 1090

Cam Stack Cleaned and Rebuilt

Stacks Image 891
Stacks Image 893
Stacks Image 1084
Stacks Image 1086

Drive Mechanisms Removed Cleaned, Checked for Wear & Fatigue tested; Replaced as Needed

Stacks Image 895
Stacks Image 897
Stacks Image 1078
Stacks Image 1080

Head ReBuilt

Stacks Image 899
Stacks Image 901
Stacks Image 1074

Old Grease & Residue Completely Removed; Parts placed in Ultrasonic Cleaners Machine Fully Cleaned and Relubricated

Stacks Image 2109
Stacks Image 2111
Stacks Image 1102
Stacks Image 1104

Stitch, Bobbin Winder & Bobbin and Hook Assemblies Rebuilt;

Stacks Image 2099
Stacks Image 2101
Stacks Image 1064
Stacks Image 1094

Motor FULLY Serviced; Armature Undercut Polished and Restored

Stacks Image 1106
Stacks Image 2115
Stacks Image 1062
Stacks Image 1096

Wiring Inspected and Replaced; Foot Pedal Serviced

Stacks Image 2117
Stacks Image 2119
Stacks Image 1098
Stacks Image 1100

Tensioner Rebuilt

Stacks Image 918
Stacks Image 920
Stacks Image 1143
Stacks Image 1145

Throat Plate Assembly and Feed Dogs Cleaned and Serviced

Stacks Image 922
Stacks Image 934
Stacks Image 924

Pressor Foot Assembly Rebuilt

Stacks Image 926
Stacks Image 928
Stacks Image 1141
Stacks Image 1147

Final Cleaning, Polishing and Testing

Stacks Image 930
Stacks Image 932
Stacks Image 1108
Stacks Image 1110
LOOKS CAN BE DECEIVING

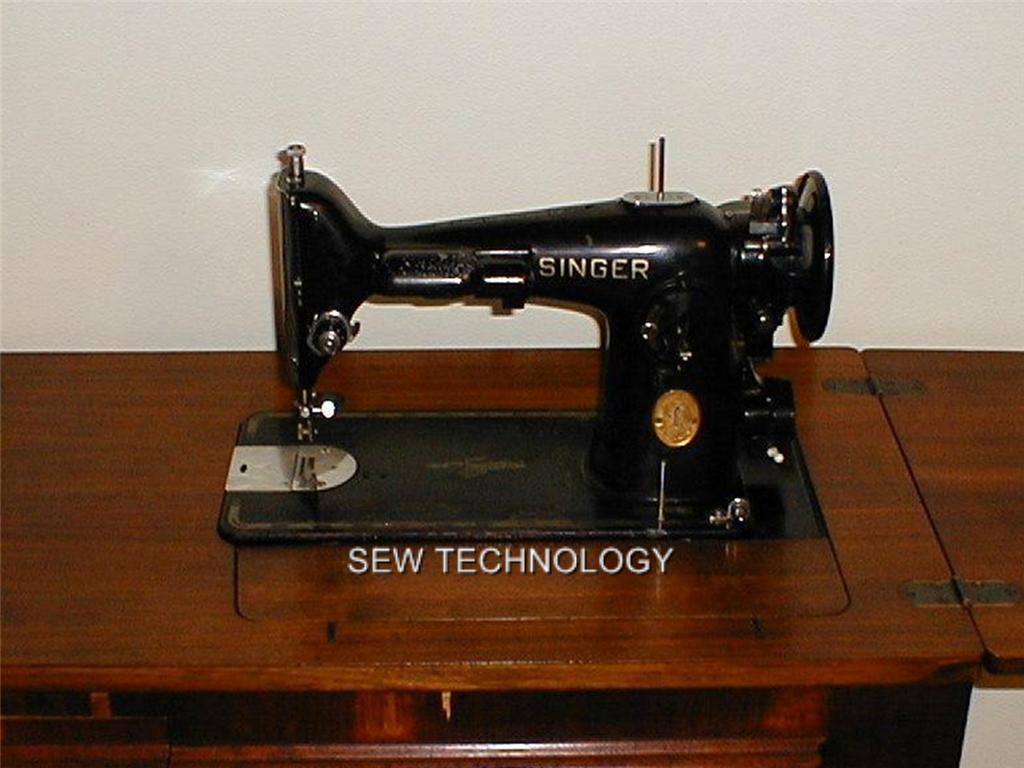

MACHINES COME TO US THAT LOOK GOOD ON THE OUTSIDE

378968049_o

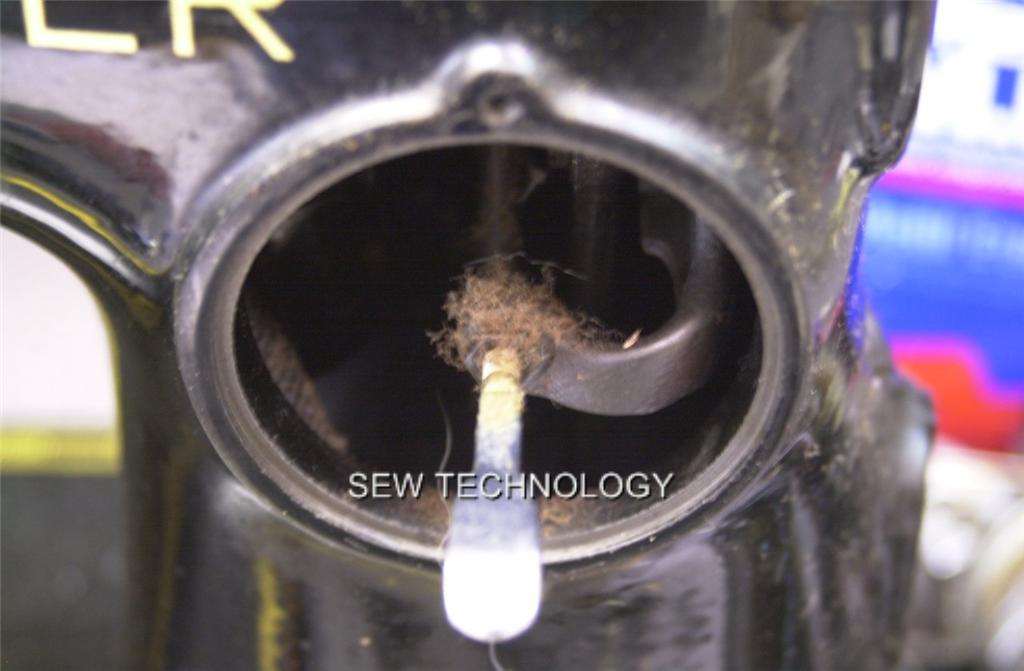

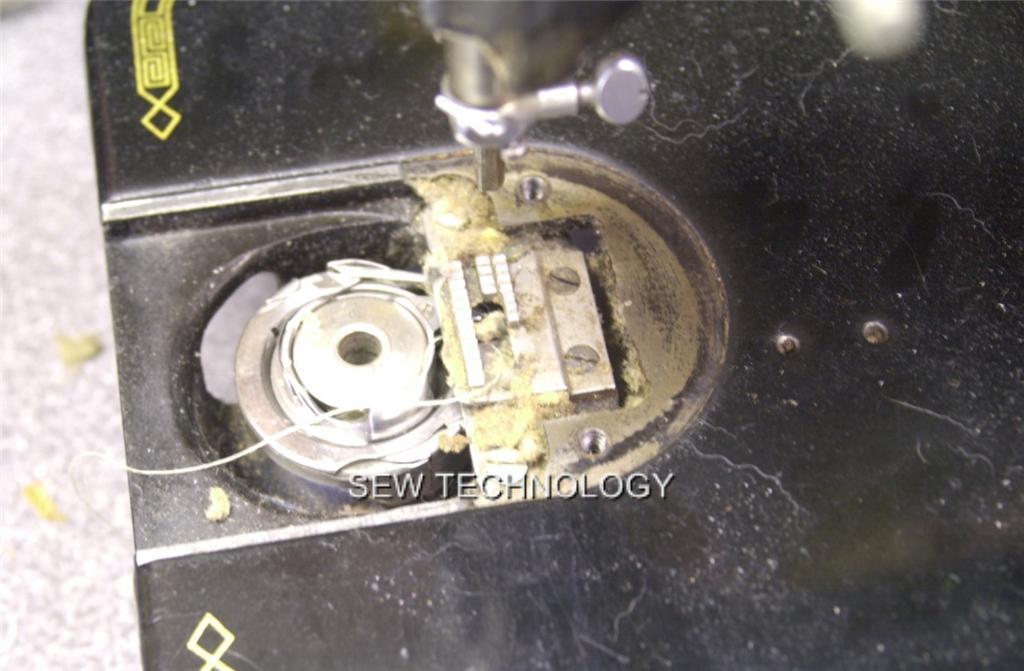

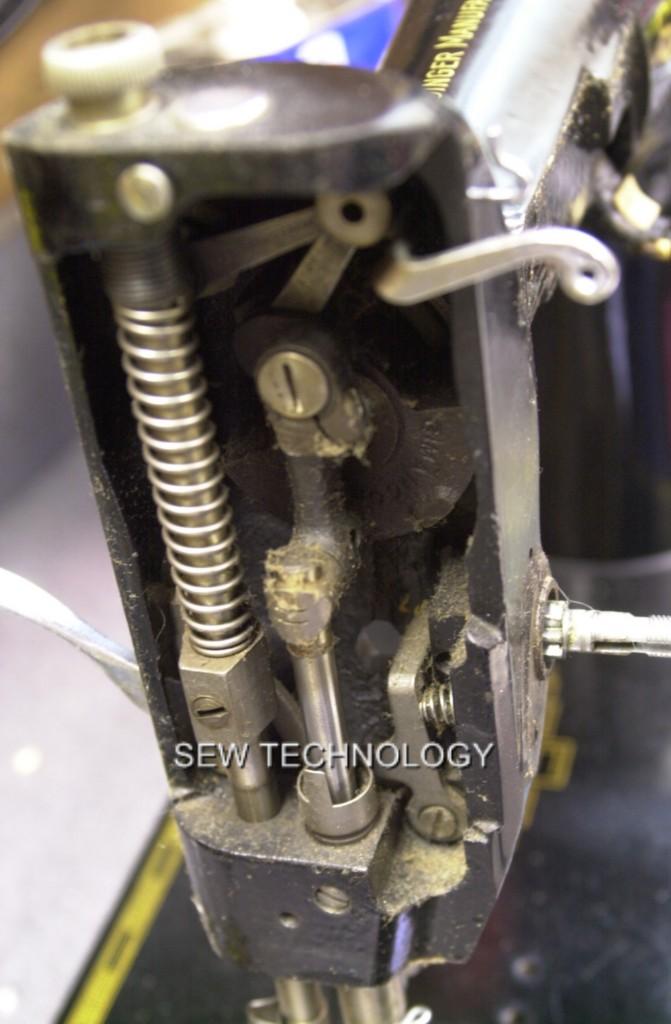

BUT AFTER 40 OR 50 YEARS OF SERVICE, THEY LOOK LIKE THIS ON THE INSIDE


378968444_o

378968463_o






378968471_o

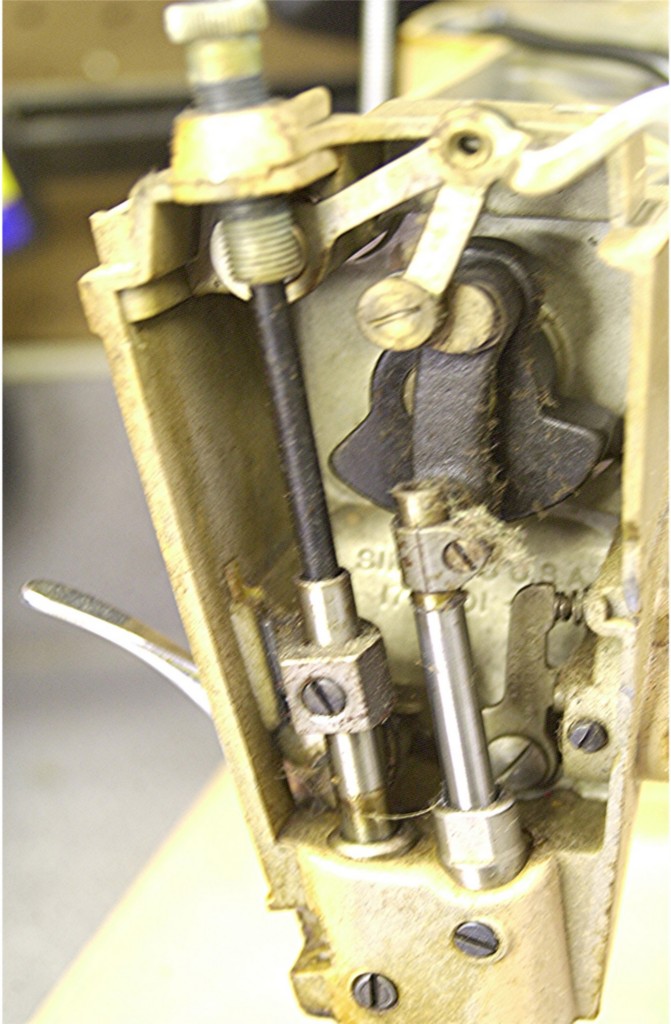

THIS MACHINE BELOW LOOKED LIKE NEW FROM THE OUTSIDE, BUT INSIDE TOLD A DIFFERENT STORY...THE NEEDLE BAR WAS SO BADLY WORN EVERYTHING IN HERE BUT THE COUNTERWEIGHT WAS DISCARDED

420646116_o


WE GET MACHINE THROUGH OUR SHOP ALL THE TIME THAT ARE "SERVICED" BY OTHERS, AND FIND IT HARD TO BELIEVE WHAT QUALIFIES FOR "SERVICE" BY SOME PEOPLE. MAKE SURE THE MACHINE YOU BUY, NOT ONLY LOOKS GOOD, BUT IS ACTUALLY SERVICED TO GIVE YOU YEARS OF TROUBLE FREE SEWING. WE TAKE PRIDE IN OUR MACHINES AND SERVICE THEM TO THE HIGHEST STANDARDS. COPY OF OUR WARRANTY IS AVAILABLE UPON REQUEST

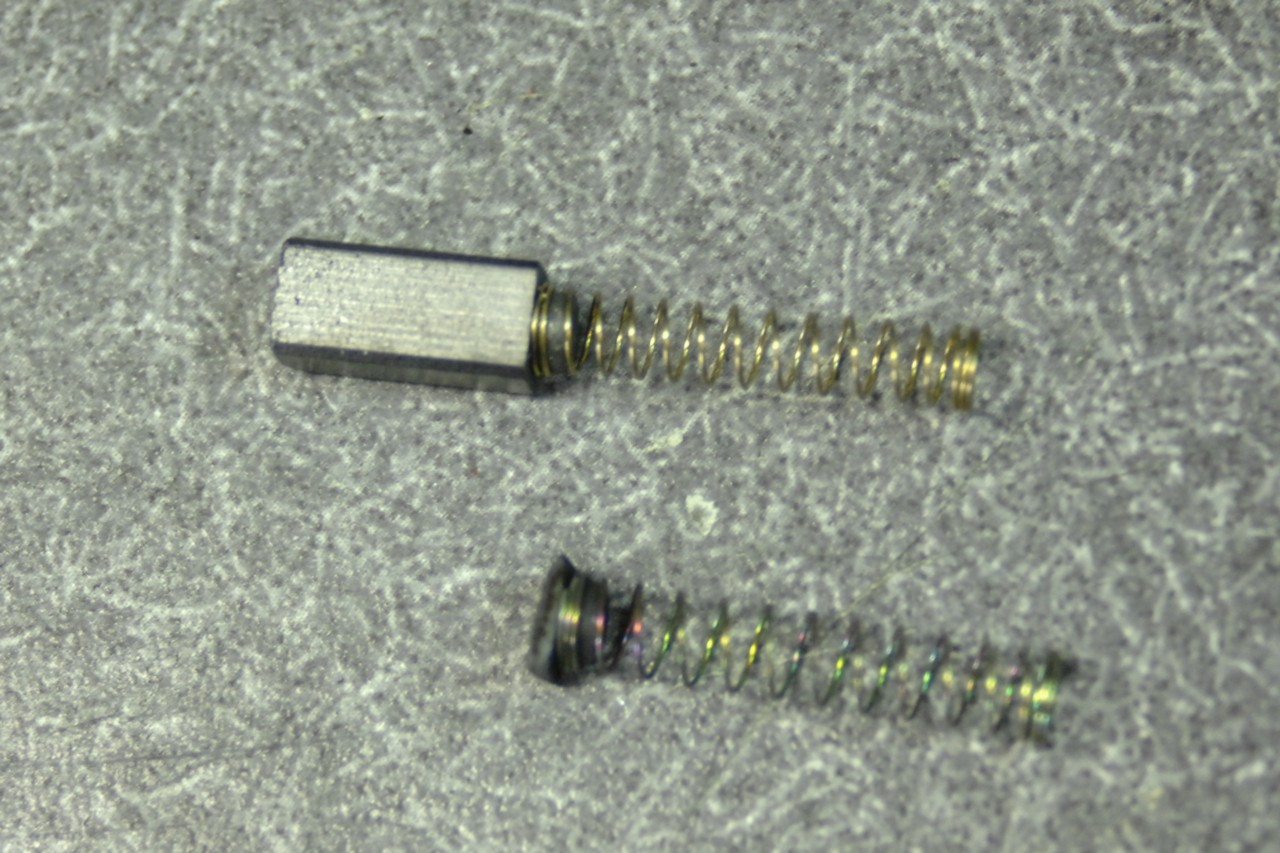

BELOW ARE TWO MOTOR BRUSHES, THE TOP ONE IS NEW, THE LOWER ONE CAME OUT OF A RUNNING MOTOR. JUST BECAUSE A MOTOR RUNS DOES NOT MEAN IT WILL RUN FOR MUCH LONGER. WE ALWAYS REPLACE MOTOR BRUSHES, BEARINGS AND SLEEVES TO ASSURE YOU A MOTOR WITH THE SAME LIFE EXPECTANCY IT HAD WHEN NEW

465763657_o

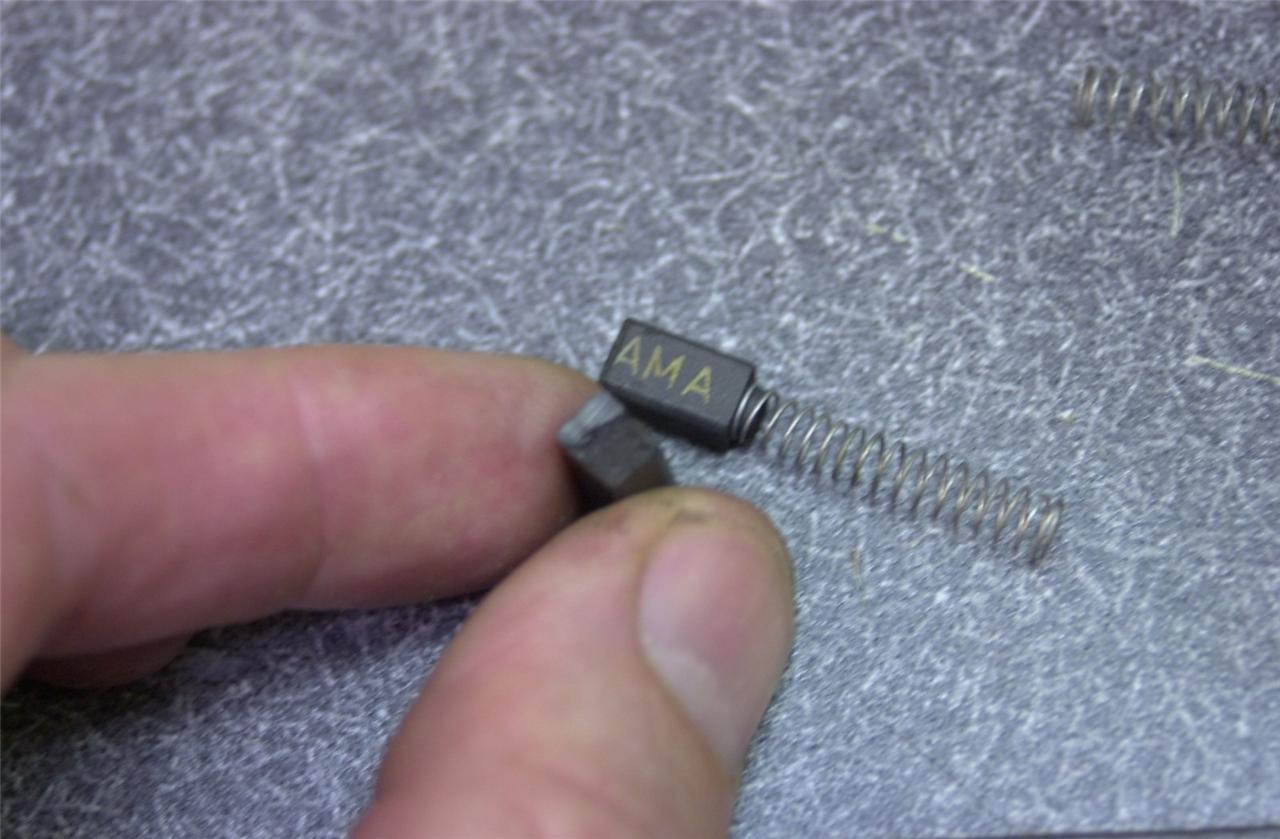

WE HAVE SEEN MANY IMPROPER BUSHES INSTALLED IN MACHINES ALSO. IF YOU LOOK ARE THE CONTACT AREA OF THE BRUSH THE FACE IS CHIPPED AWAY. IT IS NOT A CORRECT BRUSH FOR THIS MACHINE

619788138_o

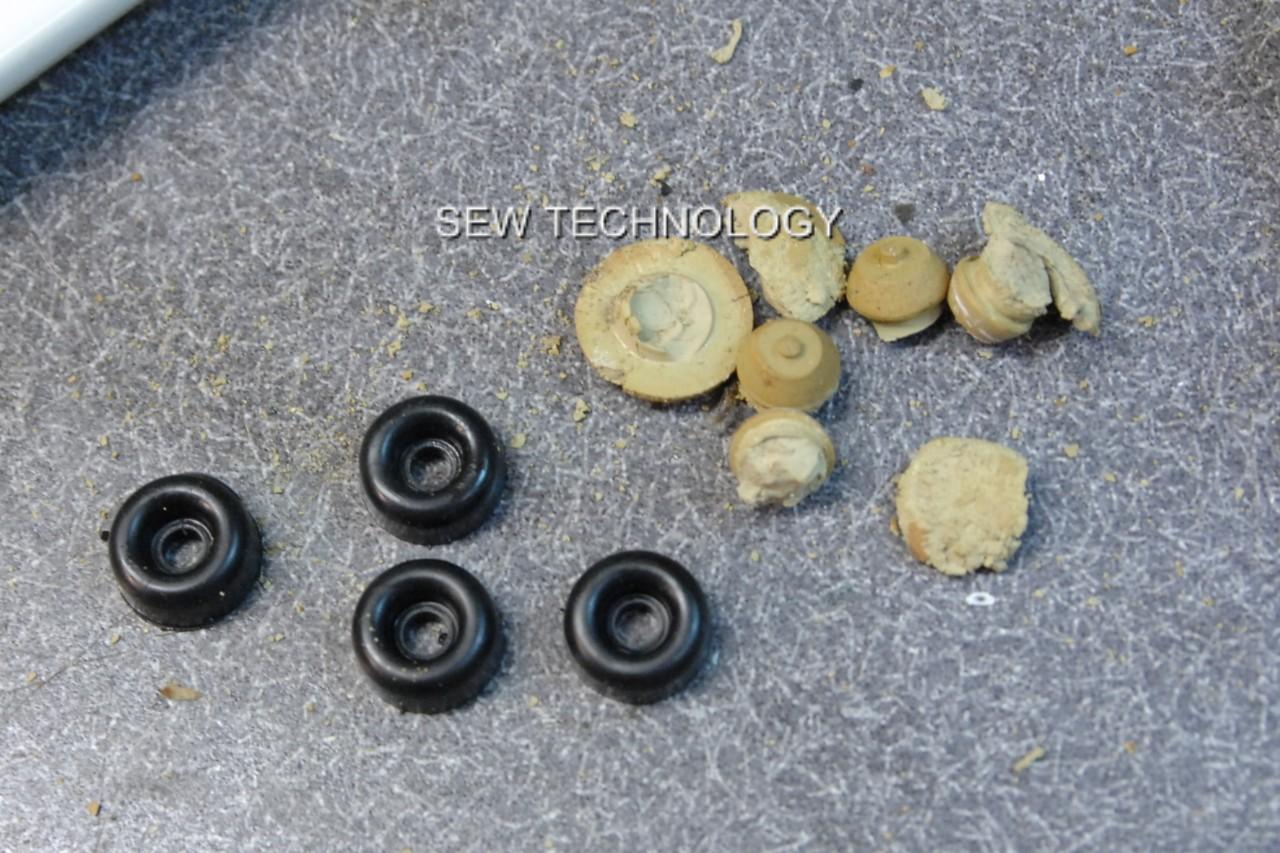

MANY OF THE RUBBER AND ORGANIC MATERIALS ON THESE MACHINES HAVE ROTTED AND DECAYED. BELOW IS AN EXAMPLE OF A NEW AND OLD SET OF BED CUSHIONS. WE REPLACE ALL RUBBER AND ORGANIC MATERIALS TO ASSURE YOU A QUALITY MACHINE

443574458_o

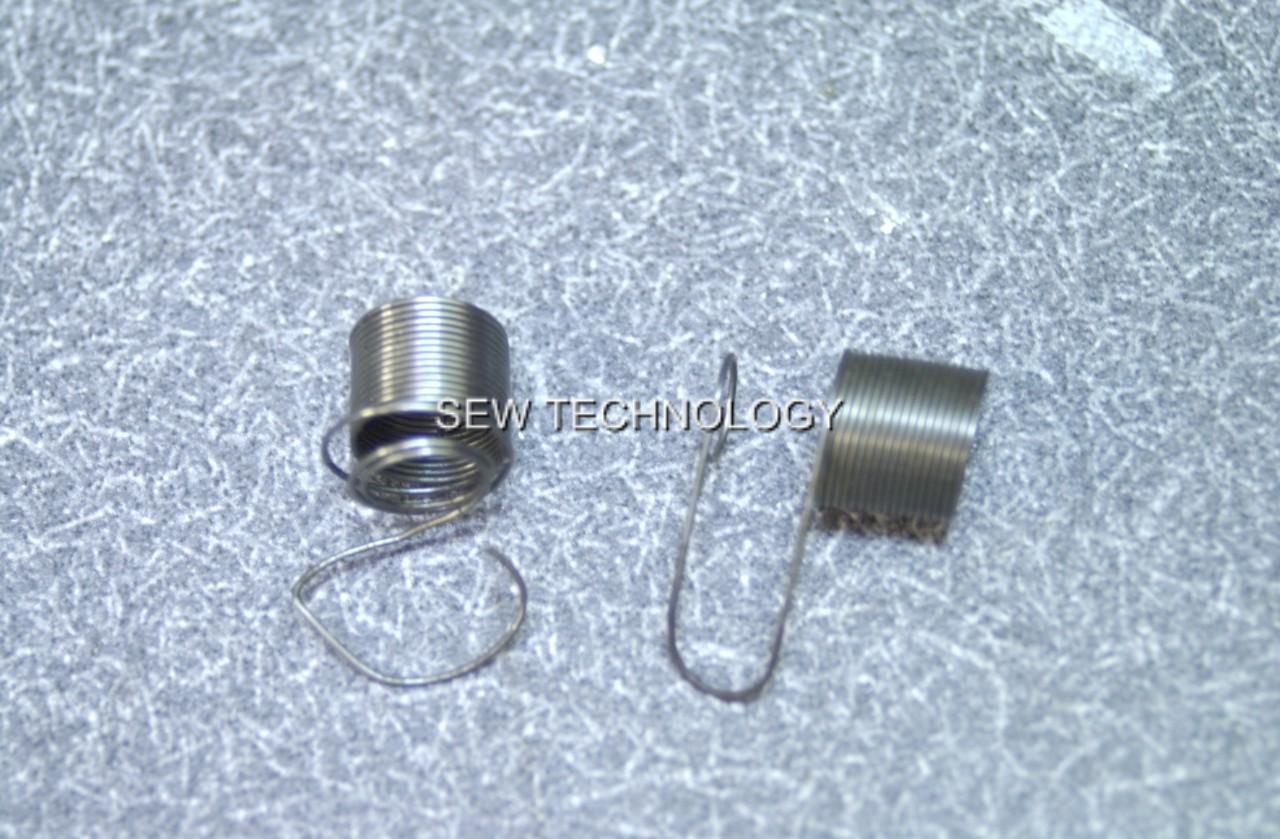

MANY HIGH USE SPRINGS, SUCH AS THE TAKE UP SPRING ARE SUBJECT TO WEAR AND ABUSE. THE ONE ON THE LEFT IS FROM A MACHINE, THE ONE ON THE RIGHT IS NEW. WE REPLACE ALL HIGH USE SPRINGS

419605612_o

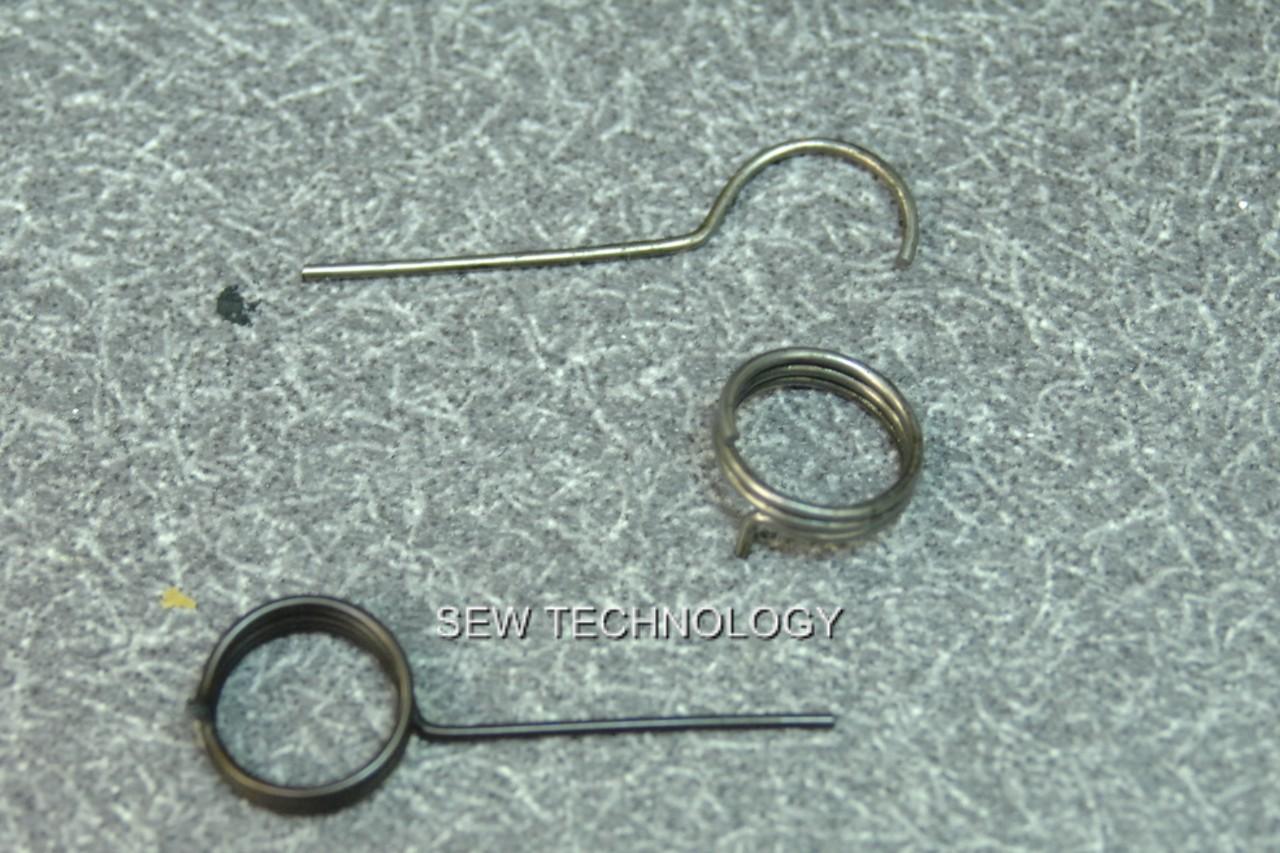

HERE IS A BROKEN BOBBIN WINDER SPRING AND A NEW ONE. THE BROKEN ONE WORKED JUST ENOUGH TO MAKE YOU THINK IT WAS OK, BUT CLEARLY WAS NOT

. 450422594_o

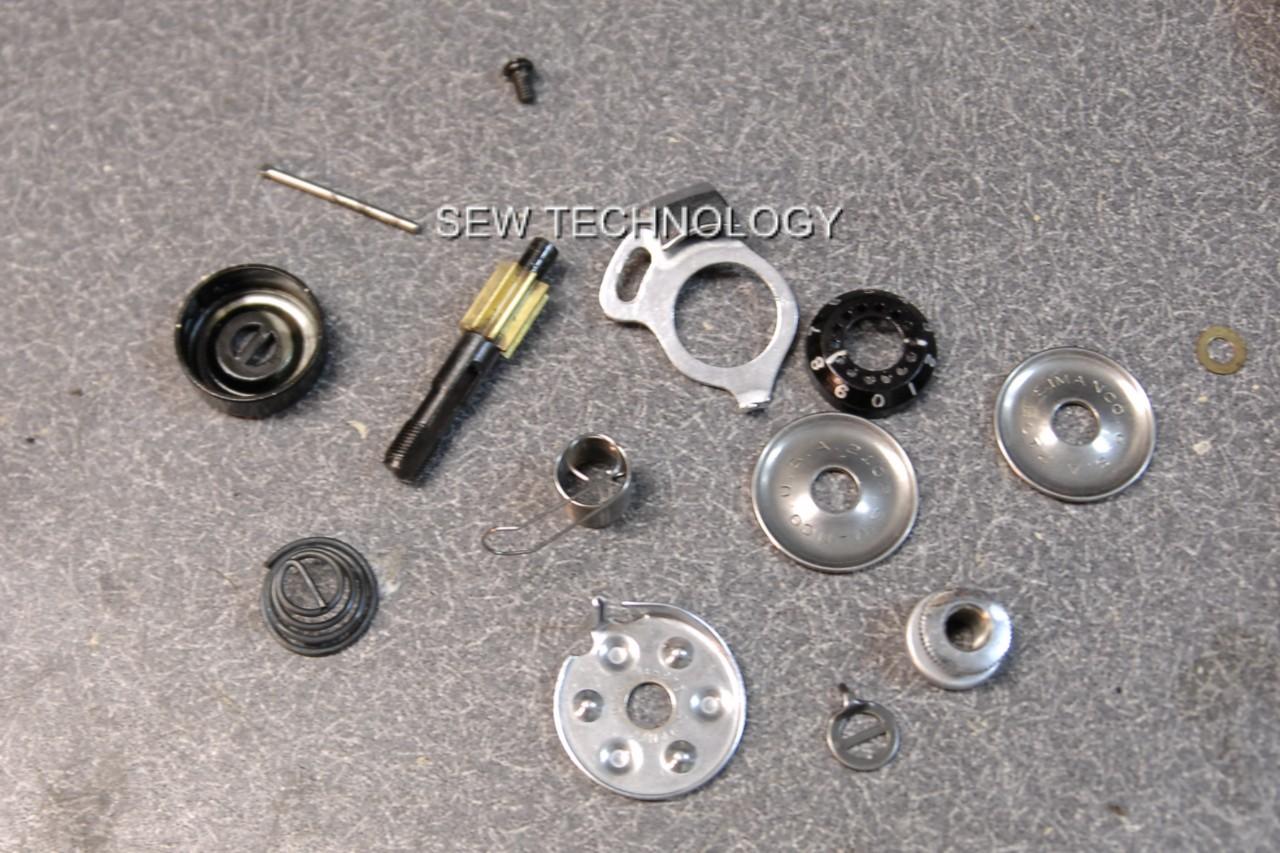

ALL OR PARTS ARE SOAKED IN ULTRASONIC CLEANERS TO GET DIRT AND CONTAMINANTS OUT OF PLACES THAT CAN NOT EVEN BE SEEN

437213502_o

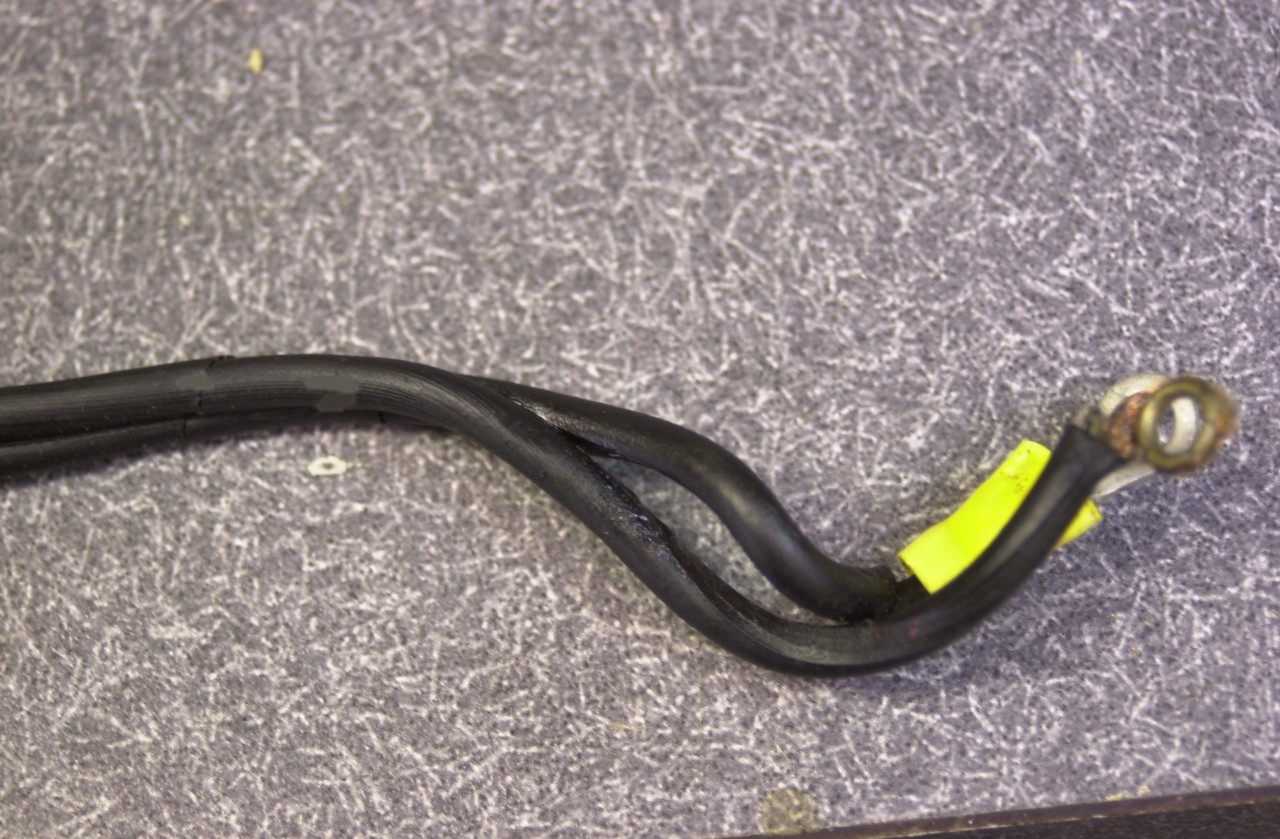

WE INSPECT AND REPLACE WIRING. JUST BECAUSE A WIRE LOOKS GOOD, DOES NOT MEAN IT IS. THIS LOOKS LIKE A GOOD WIRE

470604813_o

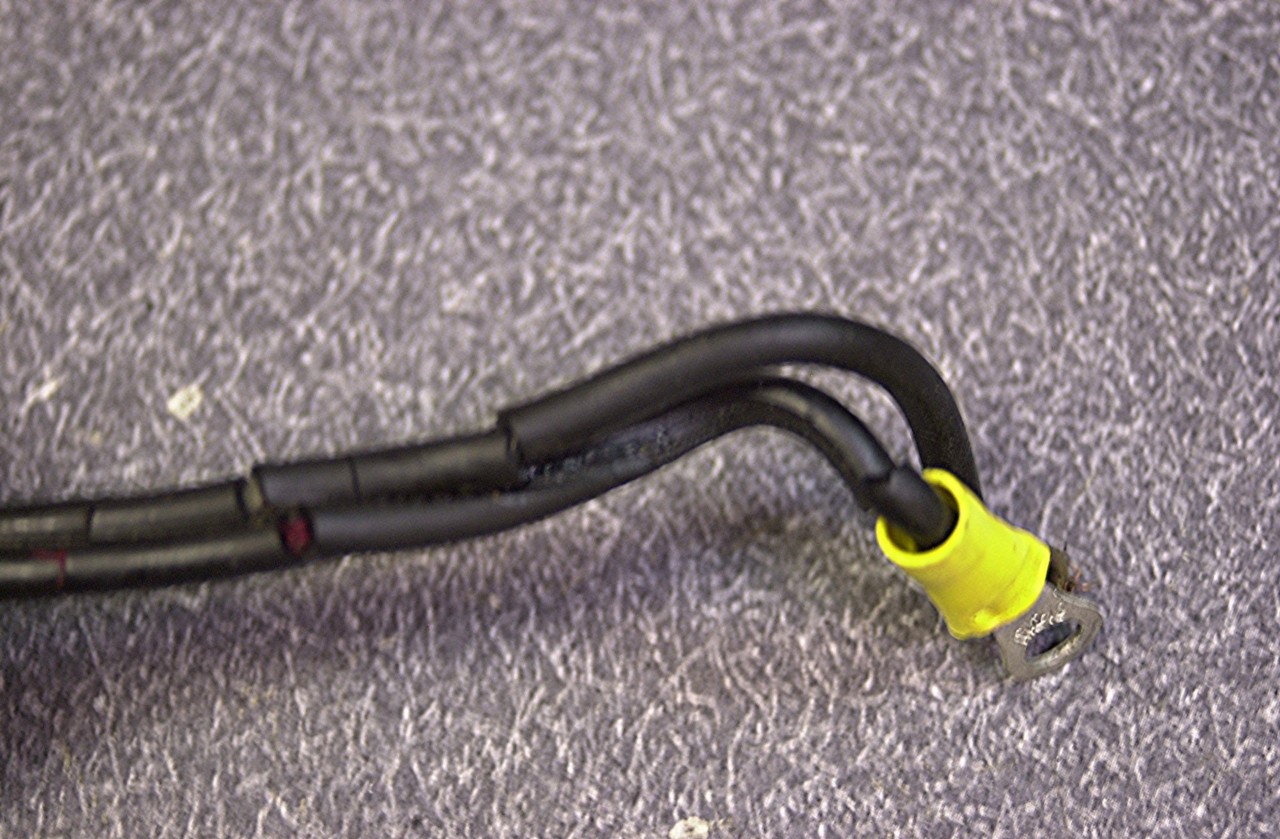

IN REALITY IT IS NOT

470604863_o


THE REASON WE CHEMICAL TEST METALS FOR INTEGRITY IS

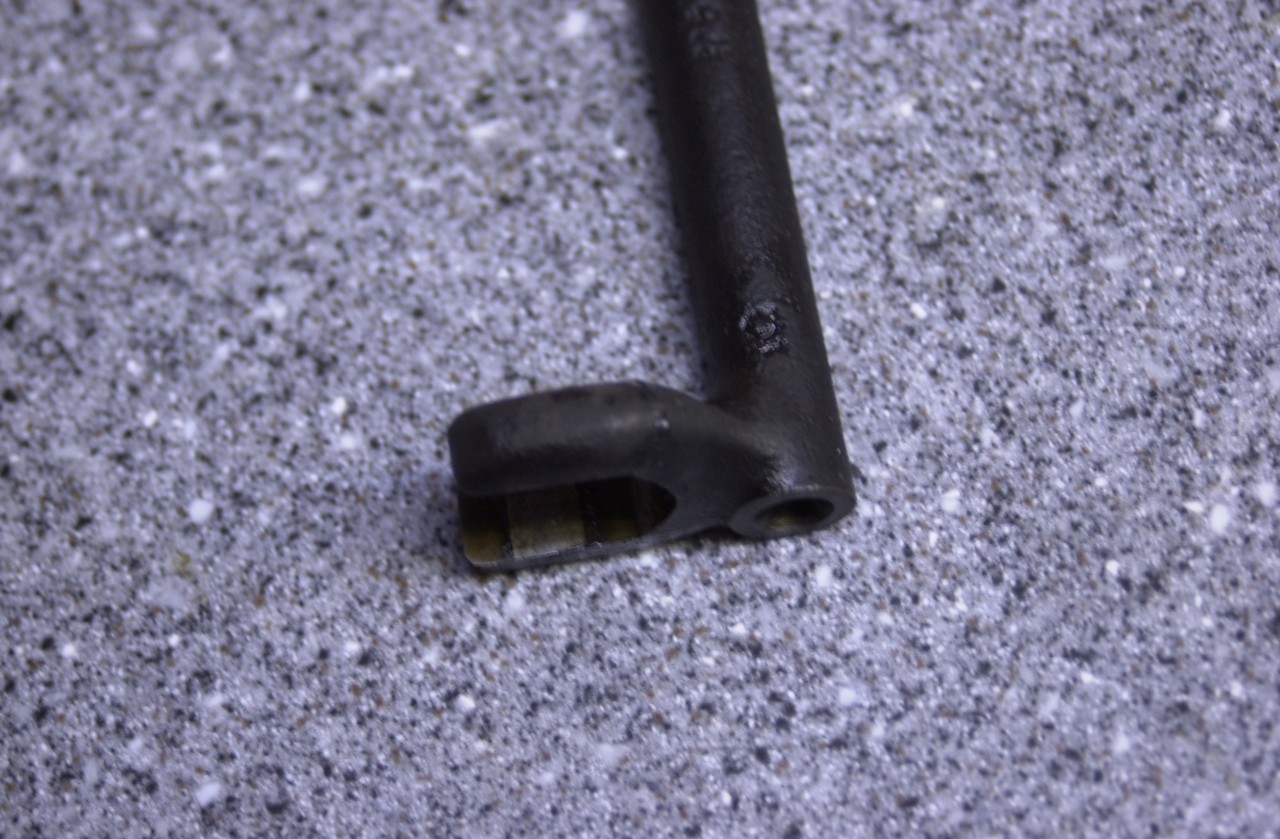

THIS CONTROL SHAFT LOOKS GOOD

532222398_o

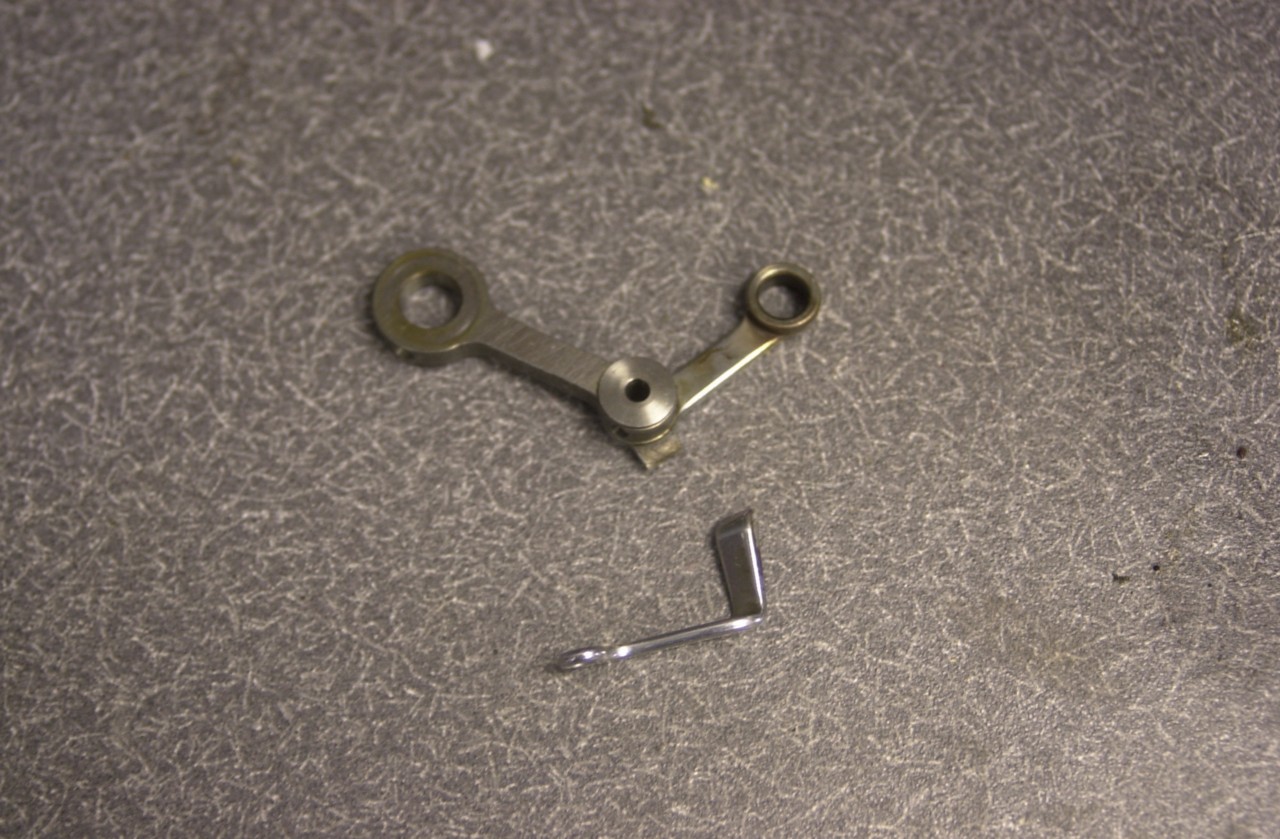

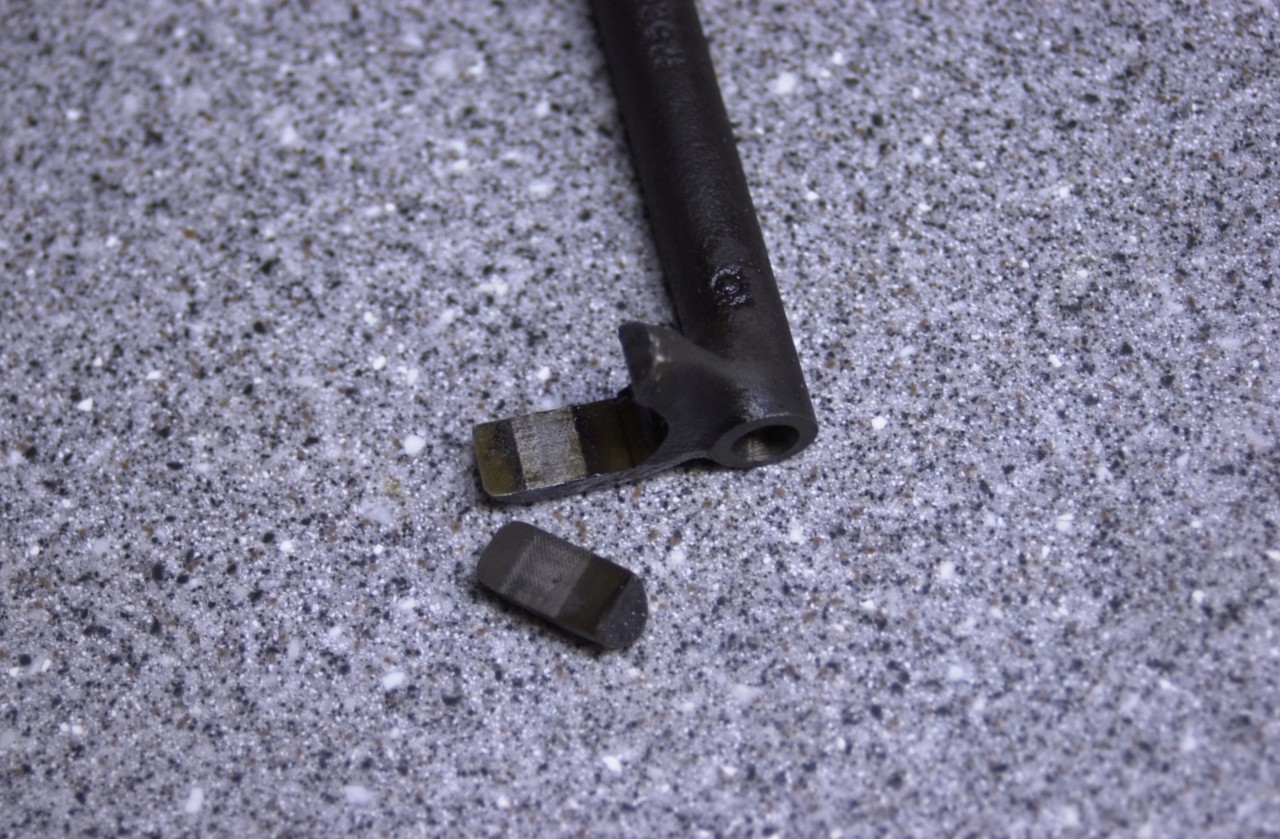

CHEMICAL TESTING SHOWED MICRO FRACTURES ALONG THE STRUCTURE OF THE METAL...A LIGHT HIT AT THE RIGHT SPOT AND

532222484_o

SMALL FRACTURES CAN CAUSE MAJOR FAILURE LATER


580616470_o

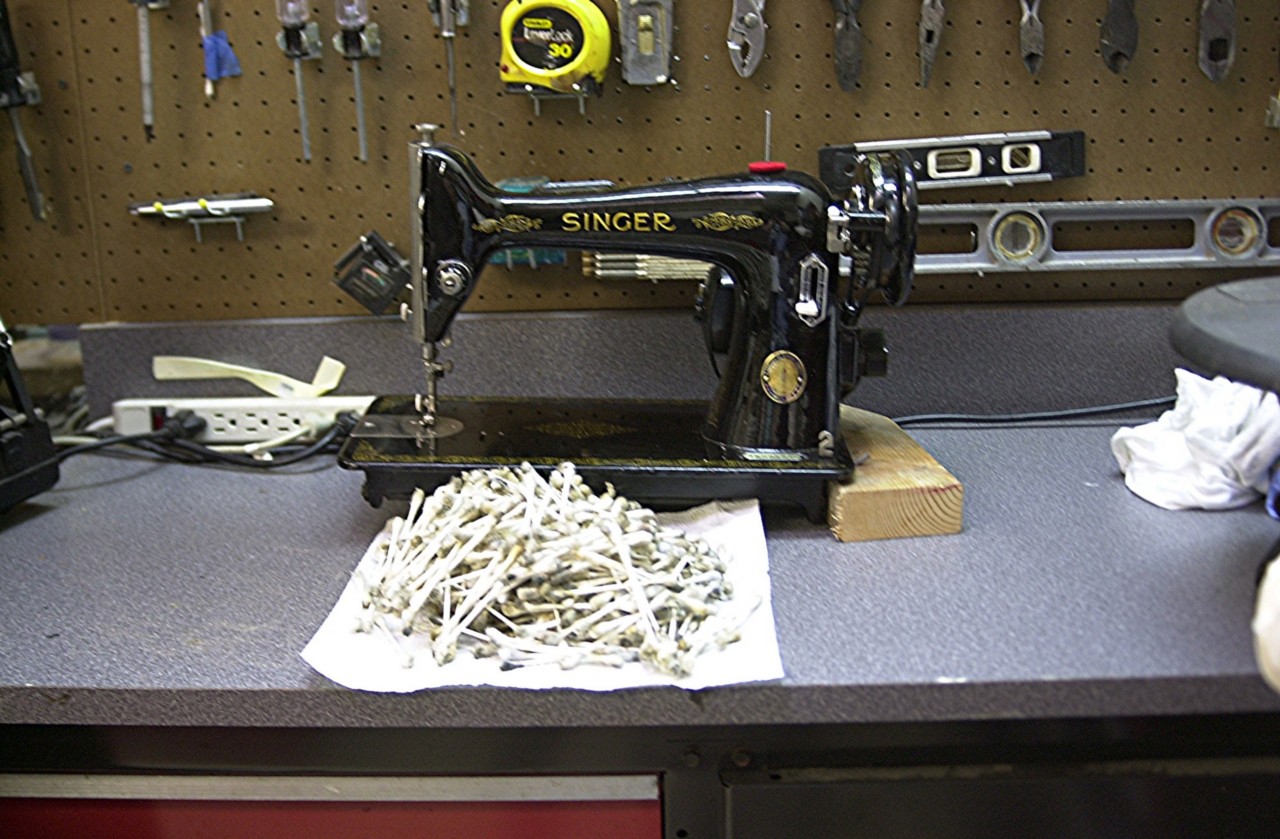

NOT ONLY DO WE COMPLETELY DISASSEMBLE EVERY MACHINE, WE GO THRU EVERY PIECE AND WHAT CAN BE CLEANED IN THE ULTRASONIC CLEANERS ARE. WHAT CAN NOT BE, EVERY CASTING, EVERY PIECE IS CLEANED BY HAND. WE USE 500 Q-TIPS ON AVERAGE ON EVERY MACHINE, GETTING EVERY BIT IF DIRT, OLD OIL, AND GUNK OUT OF EVERY CREVASSE AND CORNER. BELOW IS THE MOUNTAIN OF Q-TIPS USED ON THIS MACHINE

481516634_o


HERE IS A LETTER WE RECEIVED FROM A BUYER:
Well, I was shocked when I saw the posting for that other 401. I couldn't believe the amount of work, you put into your machines.  I wished I had known about ya'll before I made my mistake. I bought a 401A off Ebay a while back, and based on the pictures and that it came with a case. I was told that it had been serviced, I thought I was going to get something great...Well, the case was yellowed and broken, the machine had defects in the paint/and the paint was slightly yellowed that were not apparent in the photos which had been taken outside. By serviced, just like you warned on your page, it still had all the old grease, just more of it, but it was still so dirty and even smelled strongly. Well, I spent another $60 locally to have it "serviced" again thinking they would do a better job. I was wrong. Just like in your warning, serviced is different than restoration and I am a young woman new to sewing and just wasn't wise to this. So after another $60, the timing still doesn't seem right, the smell causes my eyes to burn if I use the machine for too long, it still looks dirty...etc. I have just been in absolute despair over this
